When a wire harness assembly is severely damaged, replacement is often considered the only option. But in many cases, a properly executed remove and repair solution can restore functionality while reducing replacement costs and lead time.

In a recent Aeromotive Remove & Repair project, our team tackled a harness assembly with multiple failure points — including damaged RF cabling, stripped connector housings, terminal issues, and severed wiring at the bulkhead connector.

Rather than replacing the entire assembly, our technicians worked through a full OEM-spec repair process to restore the harness and verify performance through quality control inspection.

The Initial Damage Assessment

The harness assembly arrived with several major concerns identified during inspection:

• Missing navigation antenna connectors
• Crushed connector insulation
• Pulled terminals and stripped connector cavities

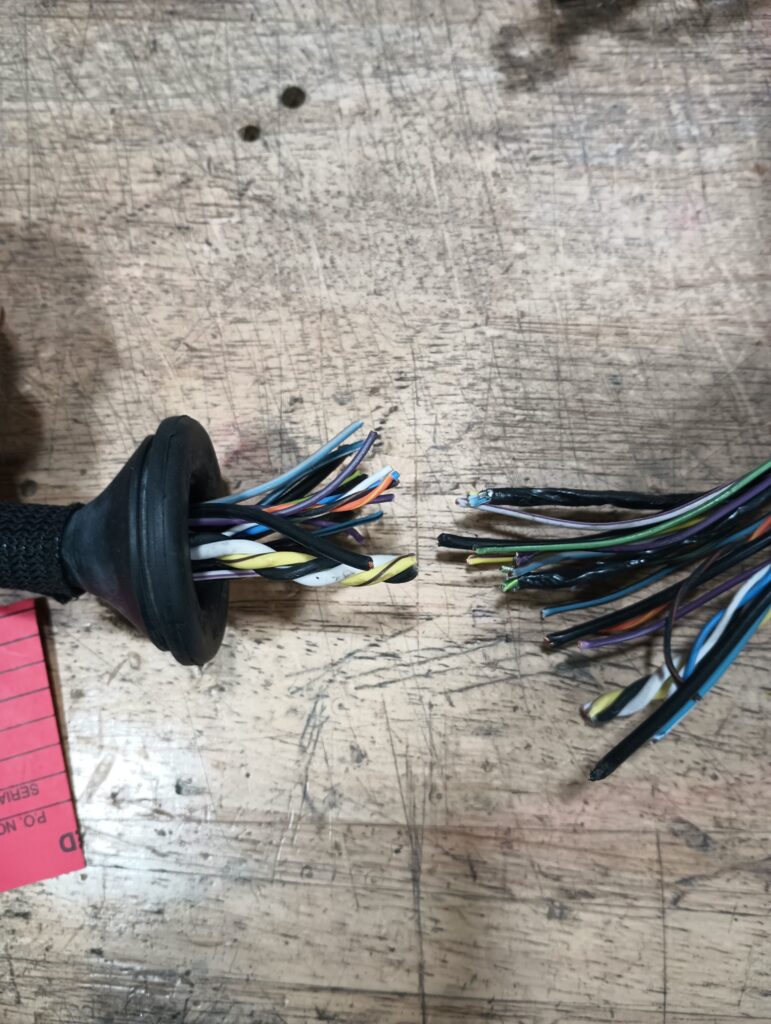

• Severed wiring at the bulkhead connector

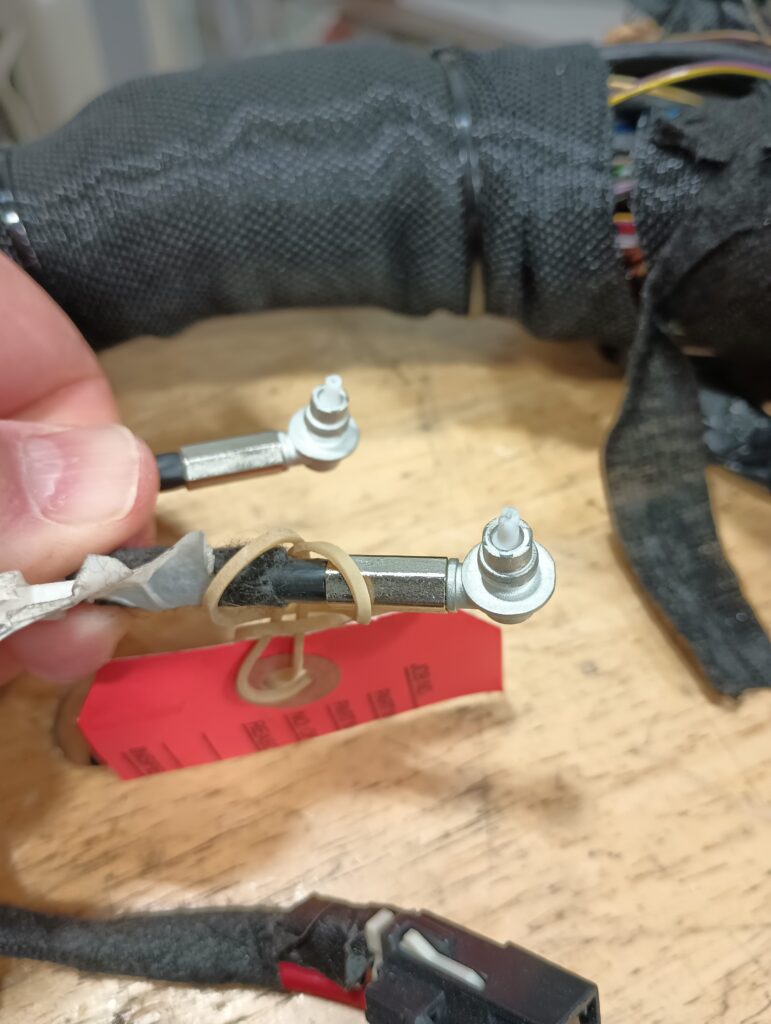

• Damaged RF cabling

Because the exterior harness section routed into the vehicle interior, the repair required careful disassembly, wire replacement, terminal processing, and reinstallation throughout the assembly.

Using OEM-spec termination methods, the Aeromotive team staged replacement materials, processed new leads, and prepared the assembly for reconstruction.

The Repair Process

After identifying the damaged sections, the team began replacing critical components throughout the harness assembly.

Key repair steps included:

• Replacing damaged connector housings
• Installing replacement RF cabling
• Re-terminating wires to OEM specifications

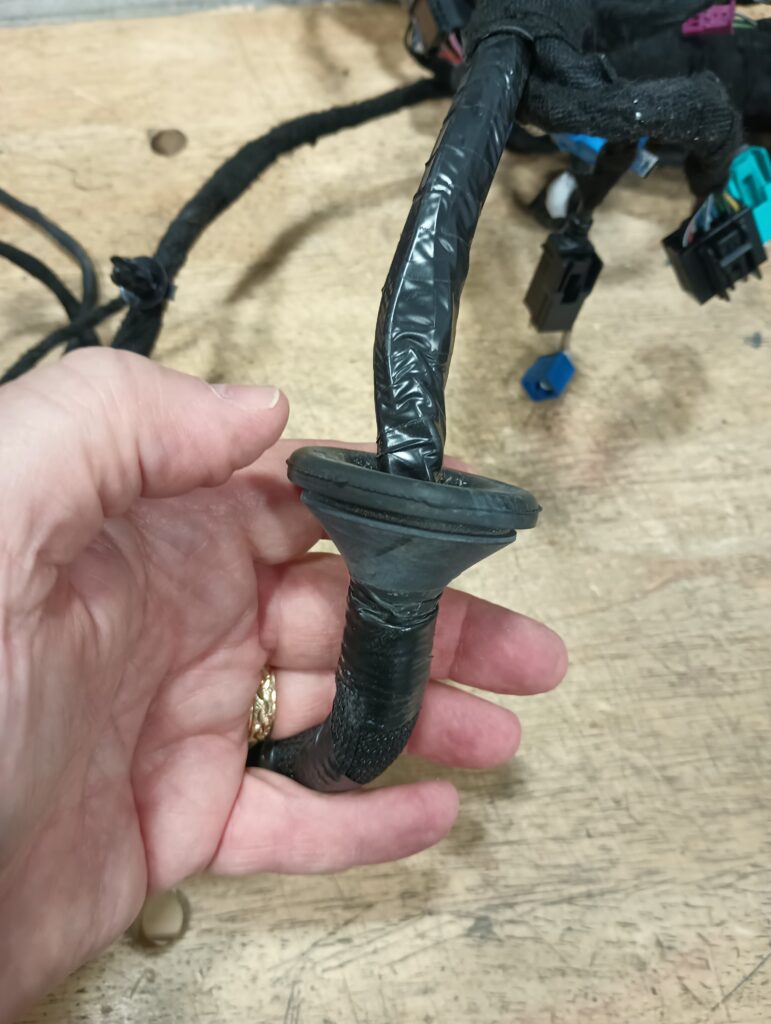

• Routing replacement wiring through the assembly
• Verifying pin positions and terminal retention
• Performing quality control inspection

One of the most labor-intensive portions of the repair involved routing and reinstalling multiple wire assemblies through the body-to-engine section of the harness.

Attention to detail during this phase is critical to maintaining long-term durability and proper functionality.

Why Remove & Repair Matters

In certain situations, replacing an entire harness assembly may not be the most cost-effective solution.

Aeromotive’s Remove & Repair capabilities help customers evaluate alternative repair strategies that can:

• Reduce replacement costs
• Maximize Uptime
• Restore assemblies to OEM specifications
• Extend the usable life of critical components

Every repair is evaluated individually to determine the most effective path forward while maintaining quality and reliability standards.

Quality Control Comes First

Before the repaired assembly leaves our facility, the Aeromotive team performs quality verification procedures, including:

• Pin position verification
• Terminal retention inspection
• Connector validation
• Final assembly review

These steps help ensure the repaired assembly meets functional and performance expectations before returning to service.

Watch the Transformation

In the video below, Aeromotive walks through the original damage, the repair process, and the completed harness assembly just a few days later.

Looking for a Cost-Effective Harness Repair Solution?

Aeromotive provides wire harness repair, remanufacturing, and OEM-spec assembly solutions for a variety of industries and applications.

If you have a damaged harness assembly and are evaluating repair versus replacement, our team can help assess the best solution for your application.

Contact Aeromotive to learn more about our Remove & Repair capabilities.
